1
7*10W
7*10W
DISPLAY
DISPLAY
Lens
Lens
IP65
IP65
空白
空白
DMX
DMX
IR conrtoller
IR conrtoller
RDM
RDM
RGBW
RGBW
空白
空白
2
3
4
5

VIDEO

PRODUCT PARAMETERS

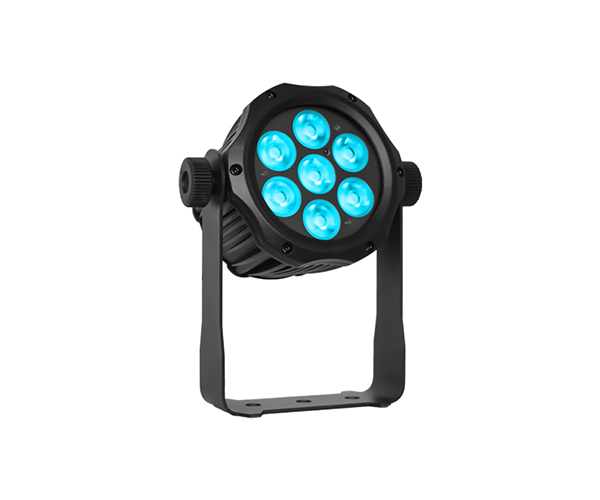

Light Source 7*10W, 4 in 1 RGBW LEDs
Lens 15°, optional 25°/40°
Programs 10 internal programs and 10 customerize programs
Dimming Curve 4 different dimming curve
Remote Control IR remote
Color Temperature White 11 kinds
Magnetic Frost Filter 25° or 45° or 60x10°
Smart Temperature Control
Power Consumption Maximum 70W
Working Time Record
Power Linkable 20pcs @230V;10pcs @110V
Material Aluminum body
Voltage 100V -240V, 50/60Hz
Display TFT displayer with four buttons
DMX Channels 1, 4, 7 & 15CH
Key Lock Key lock for buttons
Run Mode DMX 512 / Master Slave / Auto Run
IP Rating IP65
Built-in Effect color mixing, variable color chasing, strobing and fading
Temperature Range -30℃~45℃
Net Weight 2 KG
Gross Weight 2.8 KG
Power Plug Seetronic IP65 Power Plug or power outdoor cable IP65
Input Connection DMX 3 pin or 5pin in&out
Dimensions 200 x 150 x 220 mm

PRODUCT ACCESSORIES

Flight Case
Flight Case
IR Controller
IR Controller
1/4 Turn Fast Lock
1/4 Turn Fast Lock

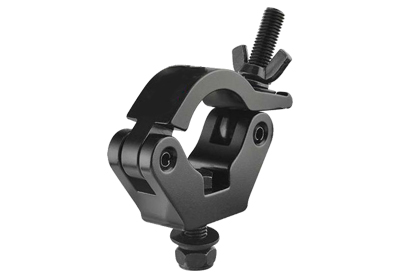

Light hook
Light hook
Power cord
Power cord

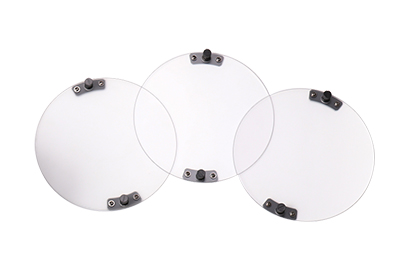

Frost filter
Frost filter

DOWNLOAD

Name Size Downloads Update Thumbnail Copy Link Download
AE027 User manual.pdf 55.75MB 25 2025-07-16 download Copy Link Download
