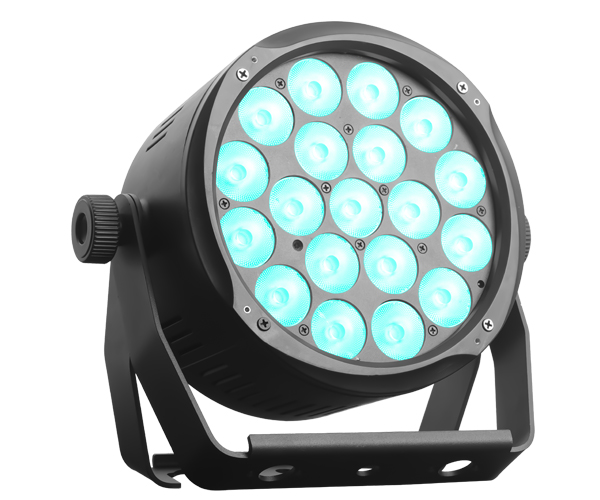

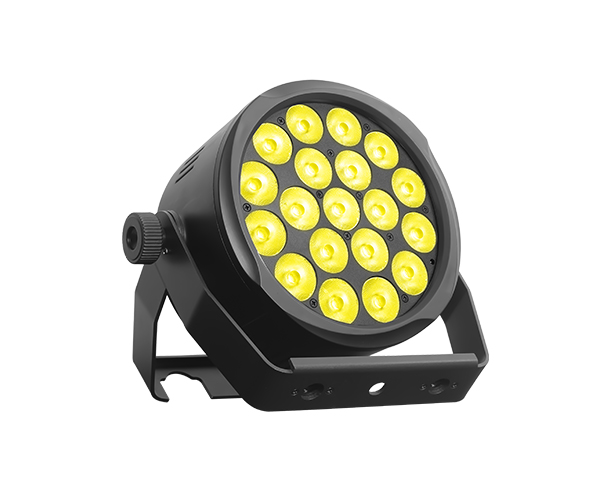

HELIOS 19 19*20W RGBL+WW+CW LED Par Light: Creating Stunning Stage Atmosphere

The RGBL+WW+CW Par light delivers high-impact illumination with 19x20W LEDs, featuring 0-100% dimming, auto programs, sound-activated mode, and adjustable strobe. Its lightweight chassis ensures rapid deployment and flexible positioning. Ideal for dynamic stage lighting, live performances, and events requiring robust effects capabilities.

19*20W

Display

Chinese wireless

RDM

HALOGEN

CRI

BLUETOOTH

RGBLAC

AW03

Lens

Inquire

VIDEO

PRODUCT PARAMETERS

Light Source	19*20W RGBL+WW+CW
Dimming Curve	Halogen dimming curve
CRI	>90
TLCI	>90
Voltage	AC 100-240V - 50/60Hz
Total Power	300W
Lens	PMMA lens, 42mm
Beam Angle	25°
Field Angle	50°
CCT Range	1700K - 20000K
Strobe Rate	Variable: 1-20kHz
Color Control	Auto, manual color, CTO, color fading
Dimming	Variable 16-bit Dimming Modes and Curves
DMX Channels	2/6/8/14/21
USB Port	Supports Wireless DMX and APP control
Tilt	360°
Net Weight	3.5kg
Net Dimensions	185114114mm

PRODUCT ACCESSORIES

1/4 Turn Fast Lock

Light hook

magnetic frost filter

Power cord

Flight Case

Safety rope

DOWNLOAD

Name	Size	Downloads	Update	Thumbnail	Copy Link	Download
AE029B-RGBL+CW+WW User manual.pdf	5.60MB	21	2025-07-17		Copy Link https://www.ywlite.com/phoenix/admin/download?fileId=sApKgDISZRyj&dp=GvUApKfKKUAU	Download
