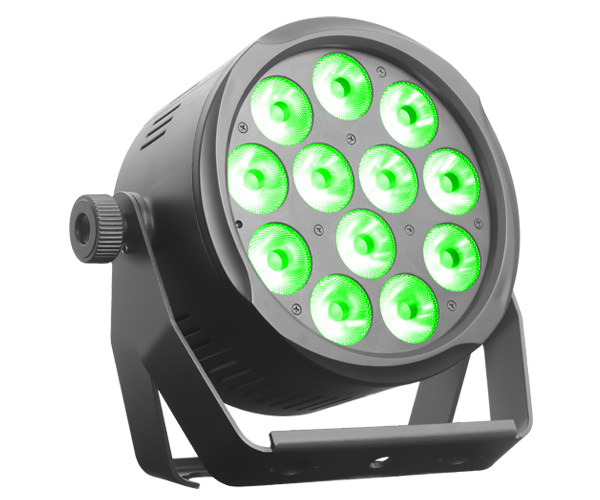

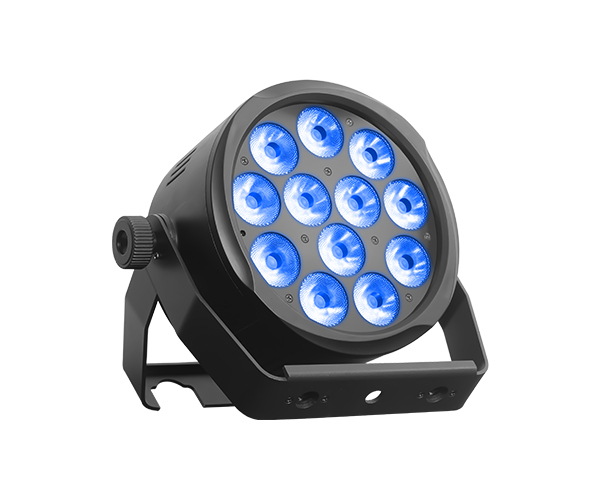

12X20W RGBLAC MERCUR 12 Bluetooth LED Par Light Stage Lamp

The RGBLAC Par light delivers high-impact illumination with 12x20W LEDs, featuring 0-100% dimming, auto programs, sound-activated mode, and adjustable strobe. Its lightweight chassis ensures rapid deployment and flexible positioning. Ideal for dynamic stage lighting, live performances, and events requiring robust effects capabilities.

12*20W

Display

Chinese wireless

DMX&RDM

Power

BLUETOOTH

RGBLAC

AW03

Inquire

VIDEO

PRODUCT PARAMETERS

LED Configuration	12pcs 20W LED, Colors: Red, Green, Blue, Lime, Amber, Cyan
DMX Channel Modes	5 modes: 2ch, 6ch, 8ch, 14ch, 21ch
Average LED Life	50,000 Hours
Dimmer and Color Control	Manual and DMX Controlled
CRI and TLCI	CRI >90, TLCI >90

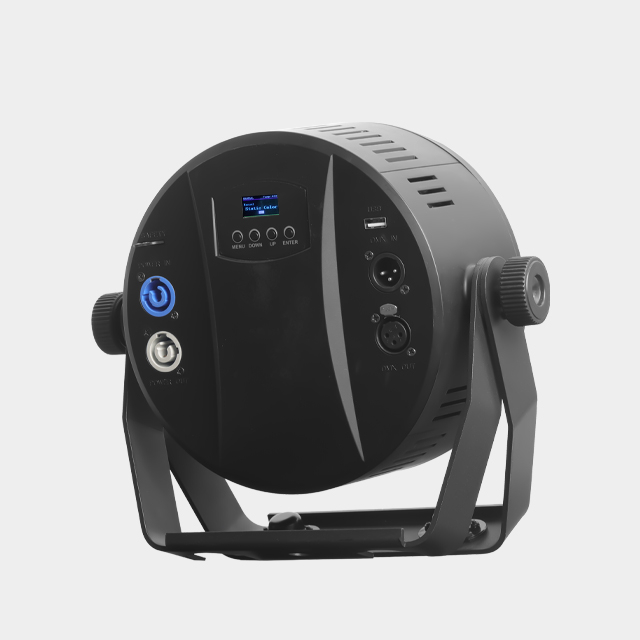

Control Panel	4 Button Control Panel with LED Display
Lens	PMMA lens, 42mm
RDM Support	Supports Remote Device Management
Beam Angle	25°
Field Angle	50°
USB Port	Supports Wireless DMX and APP control
Cable Connections	3pin DMX and IP20 Locking Power Cable In/Out
Effects	Variable Strobe Rate: 1-20kHz
Color Control	Auto, manual color, CTO, color fading
Dimming Modes	Variable 16-bit Dimming Modes and Curves
Dimming Curve	Halogen dimming curve
Voltage	AC 100-240V - 50/60Hz
Power Consumption	240W Max
Operating Temperature	-20°C to 45°C
Mounting Options	Floor Stand/Yoke
Color Combination	Red+Amber+Lime+Cyan
Length	185mm
Width	114mm
Vertical Height	114mm
Weight	6.5KG

PRODUCT ACCESSORIES

1/4 Turn Fast Lock

Light hook

magnetic frost filter

Power cord

Flight Case

Safety rope

DOWNLOAD

Name	Size	Downloads	Update	Thumbnail	Copy Link	Download
AE029A DATA SHEET.pdf	61.29MB	0	2025-07-16		Copy Link https://www.ywlite.com/phoenix/admin/download?fileId=jGfKqNyrLYvj&dp=GvUApKfKKUAU	Download
AE029A RGBL CW+WW User manual.pdf	14.29MB	0	2025-07-17		Copy Link https://www.ywlite.com/phoenix/admin/download?fileId=hNpALYIrqsmt&dp=GvUApKfKKUAU	Download
