Designing effective small theater stage lighting means facing strict physical realities. Low grid heights, limited throw distances, and restrictive power capacities make arena-scale strategies impossible. Venue managers and technical directors frequently invest in the wrong fixture types or mismatched control systems. This leads to unusable inventory, blown circuits, poor color rendering on skin tones, and acoustic interference during intimate performances. A loud cooling fan whirring overhead easily ruins a quiet dramatic monologue.
You need a framework for designing and procuring lighting systems tailored specifically to compact performance spaces. We prioritize modularity, infrastructure compatibility, and long-term performance over superficial feature sets. You must build a reliable foundation before adding complex automated fixtures. By understanding the physical limitations of your room, you can select the right lenses, calculate accurate power loads, and implement a control network that scales with your programming needs.
Infrastructure Dictates Design: Power availability (amperage) and rigging capacity must be audited before evaluating fixture categories; LED adoption is often mandatory for venues lacking dedicated dimming racks.
Acoustic and Thermal Trade-offs: In intimate spaces, the operational fan noise and heat output of budget fixtures can ruin a production. Evaluating decibel ratings is as critical as assessing lumen output.
Color Mixing Matters: Selecting the right LED color engine (e.g., RGBA vs. RGBW) is critical for achieving natural skin tones in close-proximity viewing.
Control System Scalability: Selecting between hardware consoles and PC-based DMX software hinges on operator turnover rates, network protocol needs (Art-Net/sACN), and the complexity of the venue's typical programming.
Phased Implementation: Effective lighting for a small theater stage requires a foundational front wash and side lighting strategy first, reserving budget for automated fixtures or "specials" only after baseline visibility is achieved.
Table of Contents
Low ceilings and limited stage space affect lighting angles, beam coverage, and fixture placement. Small theaters often benefit from wider beam angles, typically 36°–50°, to provide even illumination and reduce hot spots. Proper fixture positioning helps minimize harsh facial shadows, audience glare, and uneven stage coverage.
Electrical capacity determines the number and type of stage lighting fixtures a venue can support. Traditional halogen lights consume more power, while LED fixtures offer improved energy efficiency and lower heat output. Before upgrading, verify circuit capacity, power distribution, and compatibility with existing dimmers or relay systems to ensure safe operation.
Safe lighting installation requires properly rated rigging points, structural supports, and mounting hardware. Calculate the total load of fixtures, cables, clamps, and accessories before installation. Ensure that both overall loads and individual mounting points remain within their rated capacities. Professional structural assessment is recommended when existing rigging limits are unknown.
LED stage lighting offers lower energy consumption, reduced heat output, and less maintenance compared with conventional halogen fixtures. However, fixture quality affects dimming smoothness and color accuracy. High-quality theatrical LEDs with 16-bit dimming, suitable color rendering, and tungsten-style fade curves can provide smoother transitions and more natural illumination.
LED color mixing technology affects skin tone accuracy, color flexibility, and overall lighting quality. RGB fixtures are suitable for basic effects, while additional white, amber, or lime LEDs can improve color reproduction.
LED Color Engine | Main Advantage | Best Application |
|---|---|---|
RGB | Basic color mixing | Stage effects and backlighting |
RGBW | Improved white and pastel colors | General stage washes |
RGBA | Richer warm tones | Front and side lighting |
RGBAL | Greater color flexibility | Professional theatrical lighting |
Small theater lighting systems typically combine several fixture types to balance precise illumination and general coverage. Ellipsoidal spotlights provide adjustable beam shaping for performers and specific stage areas. Fresnels and PAR lights create soft, overlapping washes, while cyc lights and LED strip fixtures illuminate backdrops and scenic elements.
Moving head lights provide flexible beam positioning, color changes, and dynamic effects, making them suitable for multipurpose venues and concerts. Static LED fixtures offer simpler installation, lower maintenance, and potentially quieter operation. For small theaters focused on dialogue and traditional performances, static lighting systems are often a more practical and cost-effective choice.

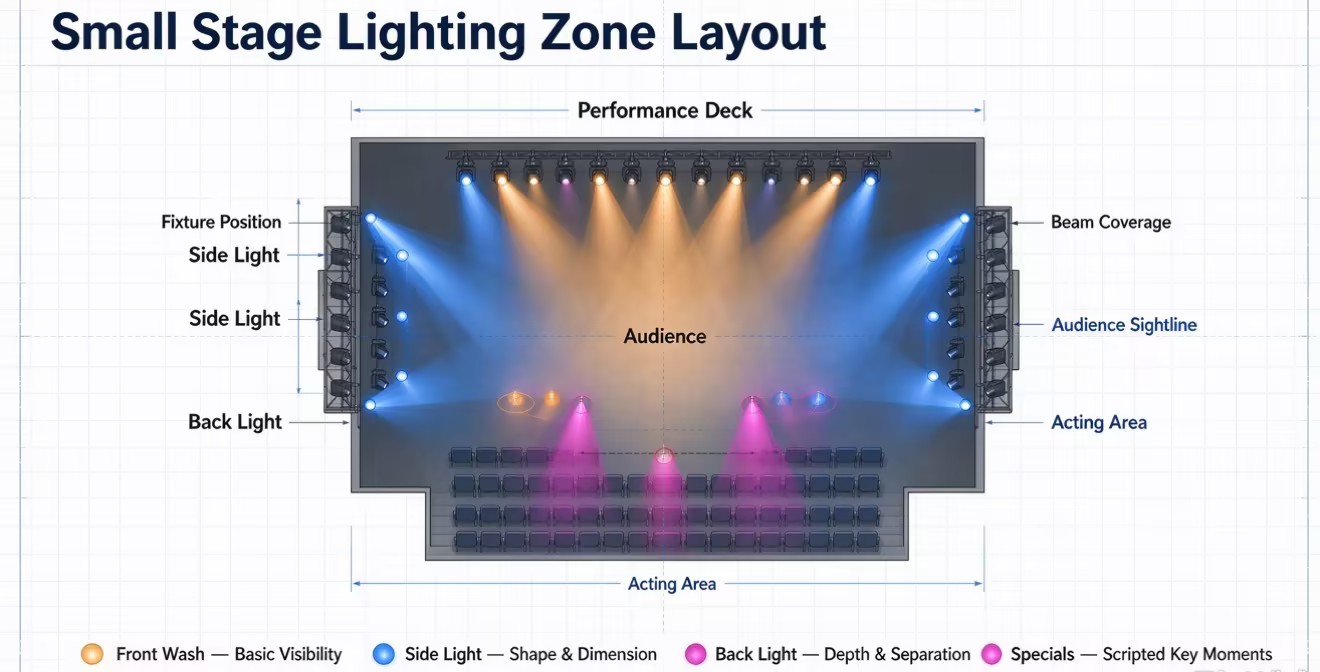

Establishing baseline visibility is the primary goal of Lighting for a Small Theater Stage. The traditional McCandless method suggests lighting an actor from two front positions, angled 45 degrees up and 45 degrees out, using one warm and one cool color. You must adapt this theory for venues with suboptimal front-of-house rigging positions. If your ceiling is only ten feet high, achieving a 45-degree vertical angle is mathematically impossible once the actor moves downstage.
You often have to settle for shallower angles. This increases the risk of spilling light directly into the audience's eyes. In thrust, alley, or black box configurations, audience seating surrounds the performance area. You must rely heavily on the precise shutter cuts of ellipsoidal fixtures and the barn doors of Fresnels. Keep the light strictly on the performance deck. A well-executed front wash ensures every actor is visible without washing out the architectural boundaries of the room.
Side and back lighting add depth, highlight performers, and separate them from the background. Side lights can be installed on floor-mounted booms or wall brackets, while backlights are typically positioned overhead. In theaters with limited wing space, wall-mounted fixtures can reduce obstructions and improve performer safety.
Specials provide focused lighting for specific scenes or performers, while practicals are visible light sources integrated into the set, such as lamps or chandeliers. LED strips can also enhance scenic effects. Proper DMX control, power distribution, and concealed wiring ensure reliable operation without interfering with the main stage lighting.
Hardware lighting consoles provide physical controls and reliable operation for live performances. PC-based lighting software offers flexible programming, visual interfaces, and often lower upfront costs. Selection should consider operator experience, production complexity, system reliability, and available budget.
DMX512 supports up to 512 control channels per universe, making it suitable for smaller lighting systems. Larger installations with LED fixtures and moving heads may require multiple universes. Art-Net and sACN transmit DMX data over Ethernet networks, enabling scalable lighting control and future system expansion.
Proper DMX cabling helps prevent signal interference, flickering, and communication failures. Use suitable data cables, termination resistors, and active opto-splitters when required. Wireless DMX offers flexibility for movable fixtures, but wired connections generally provide greater reliability for critical stage lighting.
Stage lighting budgets should cover fixtures, infrastructure, control equipment, and unexpected installation expenses. A suggested allocation is:
Budget Category | Suggested Allocation |
|---|---|
Lighting Fixtures | 45–55% |
Cables, Rigging & Infrastructure | 20–30% |
Lighting Control System | 10–15% |
Contingency | 5–10% |
These percentages are planning guidelines and should be adjusted to the venue's existing infrastructure and project requirements.
LED fixture fan noise can interfere with dialogue and performances, especially in small theaters with low ceilings. Selecting fixtures with low-noise cooling systems, silent operating modes, or passive cooling helps maintain a quieter environment. Check manufacturer noise specifications before purchasing.
Safe stage lighting installation requires properly rated clamps, secondary safety cables, secure mounting structures, and grounded electrical systems. All overhead fixtures should follow applicable rigging standards and local safety regulations. Regular inspections help prevent equipment falls and electrical hazards.
Reliable lighting suppliers should provide clear warranty terms, replacement parts, technical support, and maintenance documentation. Consistent color performance and accessible photometric data are also important when expanding an existing lighting system. Choosing serviceable fixtures helps reduce long-term maintenance costs and improves system reliability.
Successful lighting design in compact spaces relies entirely on robust infrastructure and strategic placement. Flashy automated equipment cannot compensate for inadequate power, poor rigging, or a lack of basic visibility. Prioritize high-CRI, multi-color LED wash fixtures to ensure performers look natural and vibrant. Build a scalable control network that accommodates both current operators and future expansions.
Conduct a professional power and rigging audit to define your exact electrical and structural capacities before buying any gear.
Draft a scaled 2D lighting plot to verify throw distances and beam angles, ensuring you purchase the correct lenses for your ceiling height.
Request physical fixture demos from local theatrical dealers to test acoustic fan noise and dimming curves in your actual room.
Install reliable data distribution, including opto-splitters and high-grade DMX cabling, to prevent signal dropouts during performances.
A: The exact number depends on your stage dimensions and functional zones. A basic setup requires at least six to eight fixtures for a functional front wash, plus four to six fixtures for side or back lighting. Always prioritize covering the primary acting areas evenly before adding effect lights or specials.
A: While you can physically hang lights in an eight-foot room, a minimum grid height of twelve to fourteen feet is ideal. This height allows for proper 45-degree lighting angles, preventing harsh facial shadows and keeping the fixtures out of the actors' physical reach.
A: RGB uses red, green, and blue diodes but struggles to create white or warm tones. RGBW adds a white diode for better pastels and cool whites. RGBA adds an amber diode, which is essential for rendering natural human skin tones and traditional warm theatrical washes.
A: Yes, you can mix them on the same DMX data network. However, they cannot share the same power infrastructure. Halogens must plug into traditional dimmers, while LEDs require direct, non-dimmed relay power to prevent damage to their internal components.
A: A Fresnel produces a soft-edged, blendable pool of light, making it ideal for general stage washes. An Ellipsoidal produces a hard-edged beam. It features internal shutters for precise light cutting and can project patterns onto surfaces.
A: Wireless DMX is highly reliable for moving set pieces or isolated practicals. However, it operates on the crowded 2.4GHz spectrum. For critical front wash and key lighting, hardwired DMX is always recommended to prevent signal drops caused by audience cell phone interference.
