HELIOS ZOOM 19*20W RGBL + WW + CW LED Par Light for Superior Stage Effects

AH031B

You are here: Home » AH031B

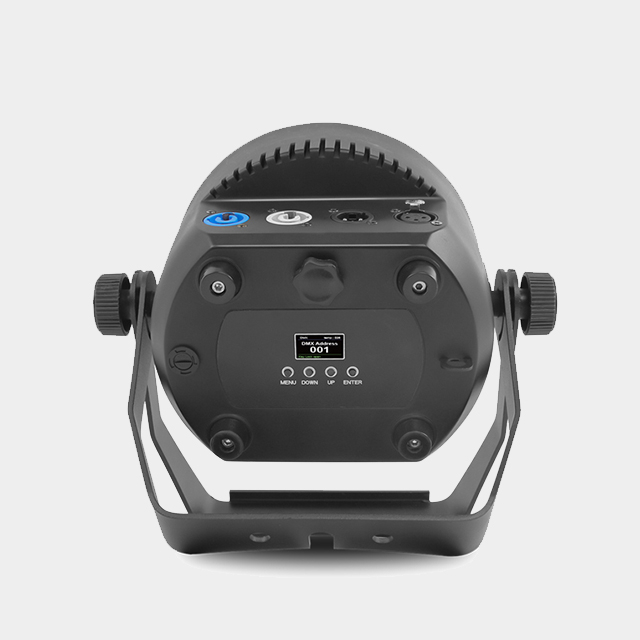

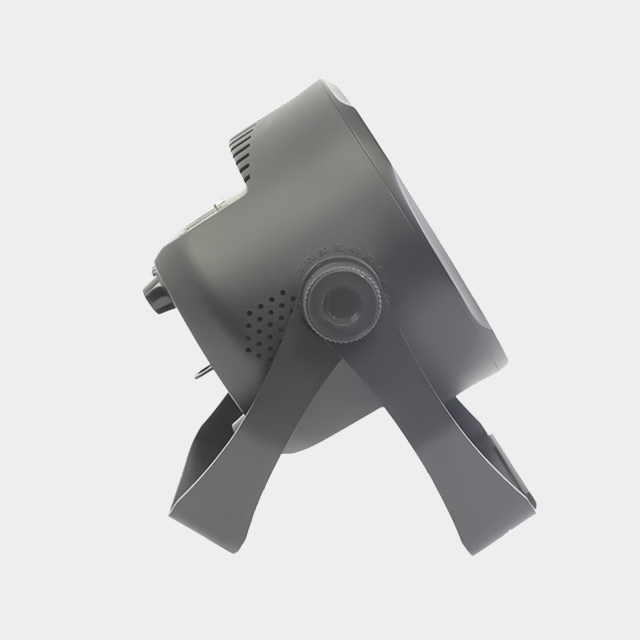

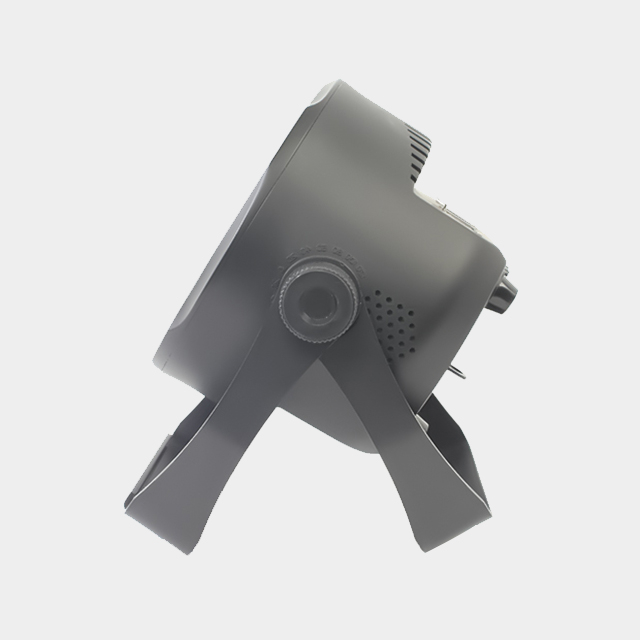

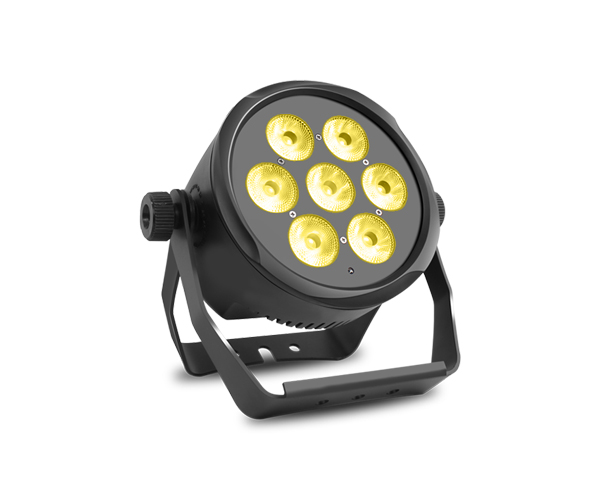

Stage Lighting 7X15W 4in1 RGBW LED ECO SLIM PAR

Professional RGBW LED fixture featuring 7×15W. Delivers 80,000-100,000-hour lifespan with 0-100% dimming (constant color regulation) and multi-color strobe. Operates via DMX512, internal programs, or manual control with 4-digit alphanumeric panel. Lightweight chassis optimizes portability for touring and installations. Ideal for various lighting needs.

7*15W WW+CW

Display

DMX

IP20

IR Conrtoller

Lens

Inquire

VIDEO

PRODUCT PARAMETERS

Product Specifications

LED	7 * 20W 2 in 1 CW+WW LED
White color	White or color strobe effect, with speed adjustment from 1 to 25 flashes per second
Lens	25°
Control	Smart temperature control
Lux	3234 lux at 2m distance
Record	Working time record
Power	70W
Material	ABS environmental materials
Voltage	AC100-240V, 50-60HZ
Locking	Key lock for buttons
DMX channels	6, 8, 11 & 18 / 4, 6, 9 & 14 / 2, 4, 7 & 10
Displayer	LED displayer with four buttons
Run Mode	DMX 512 / Master Slave / Auto Run
Waterproof	IP20
DMX Input/Output	XLR 3-Pin Male / XLR 3-Pin Female
Temperature	40°C
Built-in Effect	Color mixing, variable color chasing, strobing and fading
G.W	4kg
Separately control	IR remote controller
Dimensions	258 x 190 x 208 mm
Programs	Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation

PRODUCT ACCESSORIES

1/4 Turn Fast Lock

Light hook

Power cord

IR conrtoller

DOWNLOAD

Name	Size	Downloads	Update	Thumbnail	Copy Link	Download
AH031C User manual.pdf	5.89MB	0	2025-08-13		Copy Link https://www.ywlite.com/phoenix/admin/download?fileId=WApUgjYaqKEO&dp=GvUApKfKKUAU	Download
