AH012
You are here: Home » AH012
1

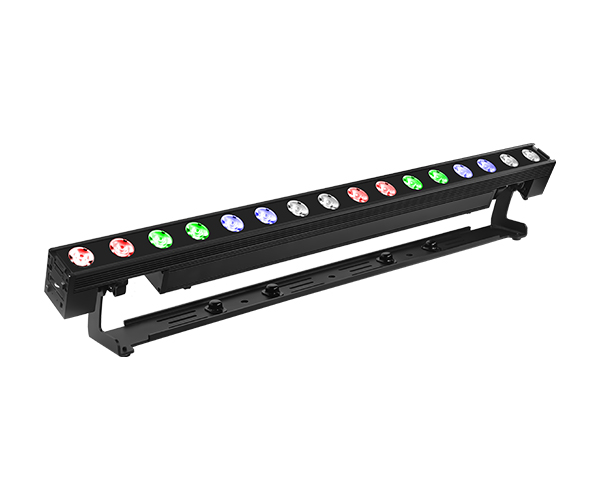

16*10W RGBW
16*10WRGBW
DMX
DMX
IP65
IP65
IR conrtoller
IR conrtoller
Display
Display
Pixel control
Pixel control
Equal Distance
Equal Distance
RDM
RDM

VIDEO

PRODUCT PARAMETERS

LED expected lifetime 50000H
Electrical protection Overload protection, output overvoltage protection, over-temperature protection
Lightsource 16*10W RGBW
Native lens options 20°
Optional filters 15°
Color Temperature (at full) 2700K/3200K/3500K/4000K/4500K/5000K/5600K/6000K/6500K/7000K/7500K/8000K
CRI RA=70
Efficacy 41 lm/W
Light output all LEDs on 4969 lm
Light output red 970 lm
Light output green 1872 lm
Light output blue 334 lm
Light output white 2153 lm
Lux @ 2m 12421 lx
Lux @ 5m 1987 lx
Lux @ 8m 776 lx
Lux @ 10m 497 lx
Native beam angle(s) 15°(Use 20°lens)
Color options Fine sand black(Black-RAL 9004)
IK rating IK07
IP class IP65
Lens material PE
Material Aluminium
Net dimensions 1008*95*160mm
Net weight 5.55kg
Color calibration 0-255
Dimming Curve Linear/Square Law 1/Square Law 2/Square Law 3
Dimmer 0-255%
LED panel 16*10W RGBW
Strobe 0-20Hz Adjustable
Segment control 8 segments
Screen Type LCD

PRODUCT ACCESSORIES

Flight Case
Flight Case
1/4 Turn Fast Lock
1/4 Turn Fast Lock
电源线
Power cord
IR conrtoller
IR conrtoller
Frost filter
Frost filter
Barndoor
Barndoor

DOWNLOAD

Name Size Downloads Update Thumbnail Copy Link Download
AH012 User manual.pdf 5.37MB 0 2025-08-13 download Copy Link Download
AH012 DATA SHEET.pdf 21.34MB 0 2025-08-13 download Copy Link Download
