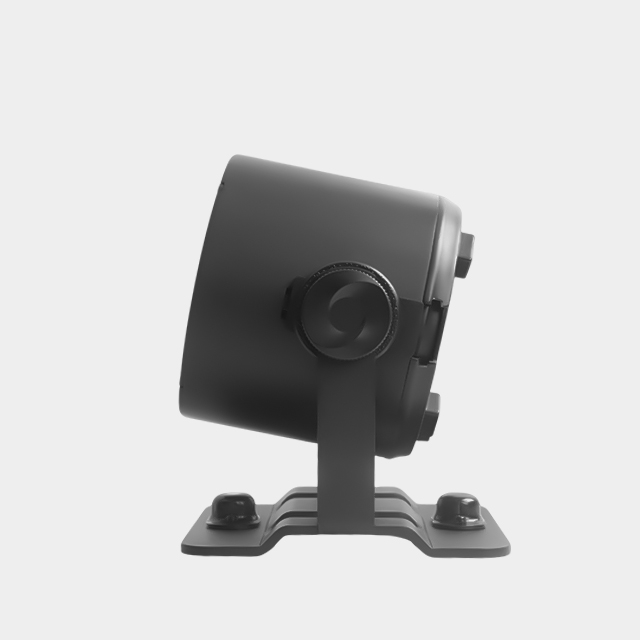

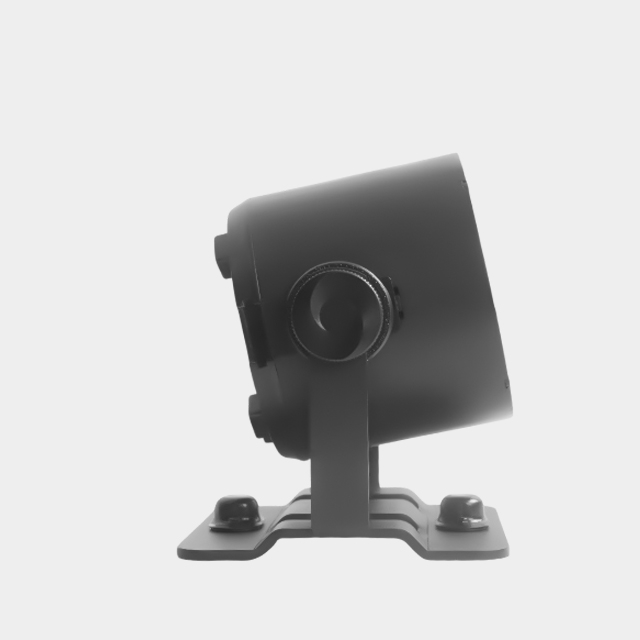

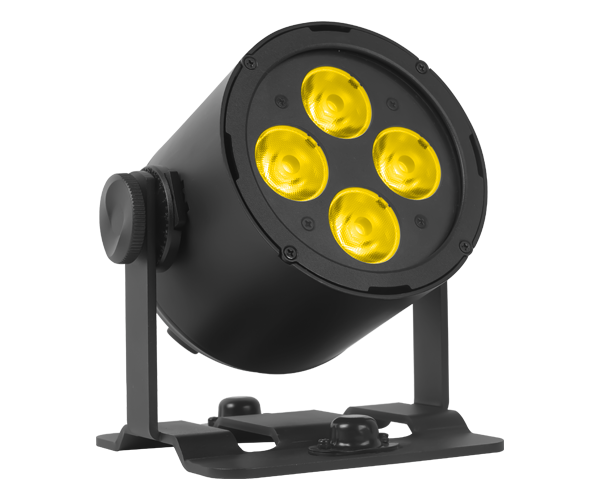

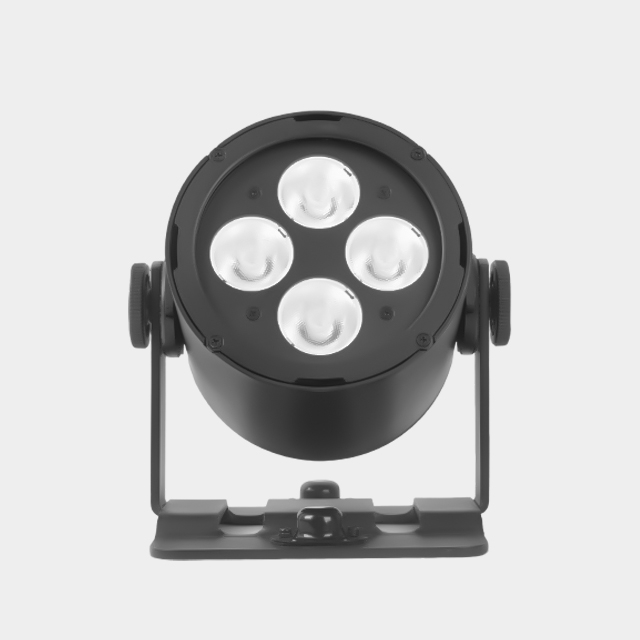

4x20W RGBW BAT SUN LED Lights for Outdoor Stage Use

A professional-grade battery-powered light fixture featuring a narrow beam. Combined with many optional filters, it unlocks versatile lighting effects. Wireless DMX and app control enable full remote operation. With exceptional color rendering (CRI & TLCI >95), it delivers accurate colors. Used both indoor and outdoor applications including wall washing, spotlighting, and decorative lighting.

4*20W

Lithium battery

BLUETOOTH

IP65

RDM

CRI/Ra

BLUETOOTH

2.4G Remote

Chinese wireless

RGB+WW

Inquire

VIDEO

PRODUCT PARAMETERS

LED expected lifetime	50000H
Dimmer	0-255%
Light source	4*20W+RGBW
Filters	hand-tight
Native lens options	20°
LED panel	4*20W+RGBW
Type of optical system	YML01CR-AL12F-2M2(12°)
Strobe	0-20Hz
Color Temperature range (RGBW)	16200K
Tilt	360°
Color Temperature range (W)	6000K
Indicator	LCD
Battery working time @ full light	4H
Dimming curve	CURVE 1/2/3/4
Battery working time @ auto	8H
Battery charging time	4.5H
DC Input	18V/5A
Color options	Black-RAL 9004
IK class	IK07
IP class	IP65
Lens material	PE
Body Material	Aluminium
Net dimensions	177160187mm
Net weight	2.87 kg
Mounting point	1 mounting points for fast locks available
Orientation	Arbitrarily
Rigging possibilities	Hanging,wall or floor
Safety features	1 safety wire connection point
Color calibration	0-255
Cooling	Chassis Cooling
Humidity (max.)	98%
Temperature range, operating	0℃-40℃
Temperature range, Start-up	0℃~70℃
Temperature range, Storage	0℃~70℃
Thermal Protection	>=105℃
Minimum distance from flammable materials	5m

PRODUCT ACCESSORIES

Charge case

Half-Antiglare barndoor

Bat Tube 11cm

Bat Ball

Adapter

Bat silvery Cover

DOWNLOAD

Name	Size	Downloads	Update	Thumbnail	Copy Link	Download
AB09 DATASHEET.pdf	30.74MB	4	2025-07-16		Copy Link https://www.ywlite.com/phoenix/admin/download?fileId=bWKUBYnhAjME&dp=GvUApKfKKUAU	Download
