DMX512 Stage Lighting: The Universal Protocol That Powers Every Professional Light Show

Behind every synchronized light show, concert tour, and theatrical production, there is one technology that makes it all possible: DMX512 stage lighting. For over three decades, the DMX512 protocol has served as the universal language of professional lighting, allowing consoles, fixtures, and control systems from different manufacturers to work together seamlessly. As lighting rigs grow more complex and intelligent, DMX512 remains the foundational standard that the entire industry is built upon.

DMX512 works by transmitting digital control signals over standard cable, with each “universe” supporting up to 512 individual control channels. Each channel corresponds to a specific parameter on a fixture — intensity, red color, green color, blue color, pan, tilt, gobo selection, strobe speed, and so on. This granular control is what allows lighting designers to program precise, repeatable cues, from subtle fades and color shifts to high-speed chases and complex moving head patterns.

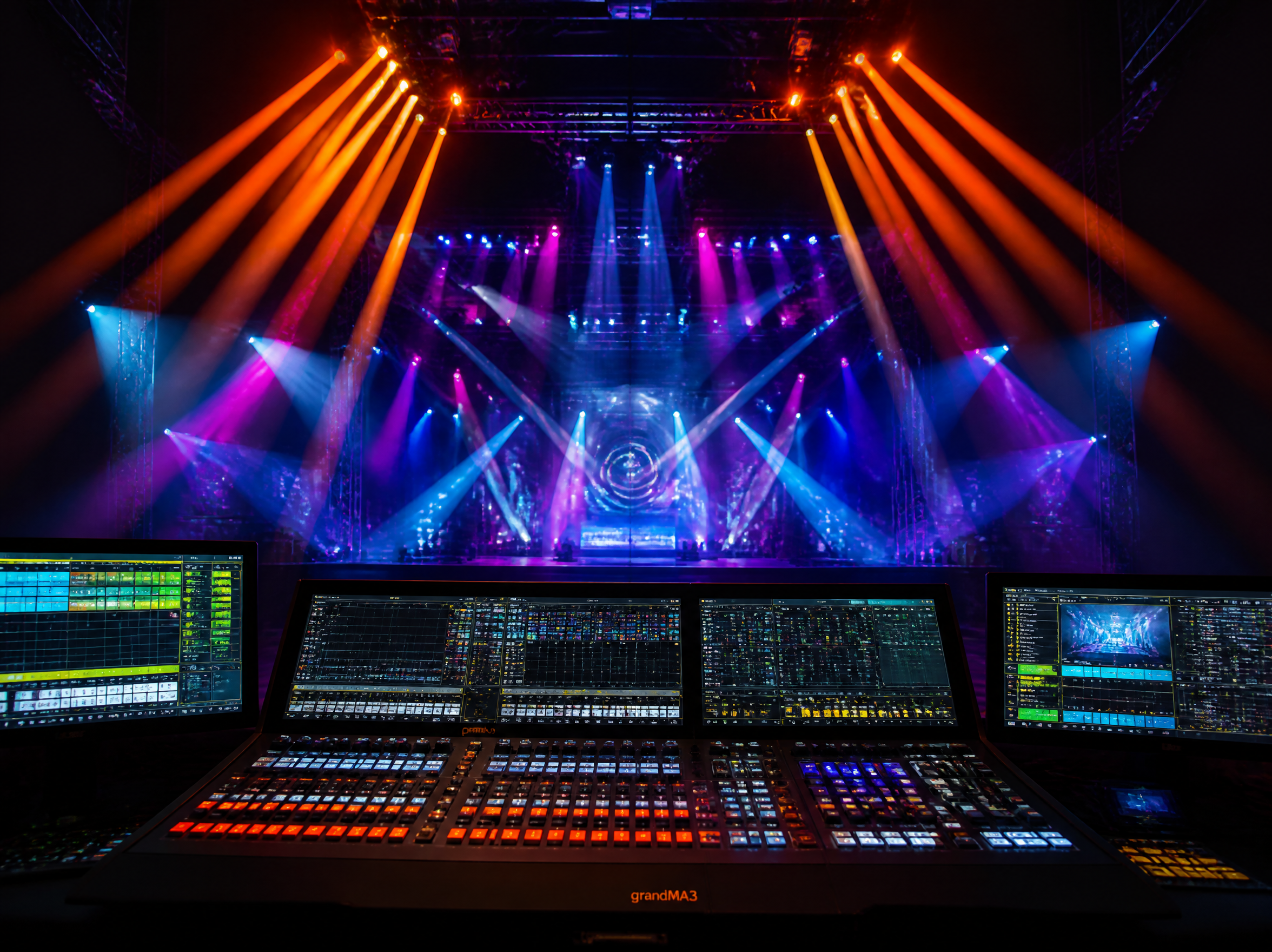

Modern DMX controlled stage lights have expanded far beyond basic dimming. Today’s professional DMX lighting system can coordinate hundreds of fixtures simultaneously, including LED pars, wash lights, moving heads, blinders, strobes, and pixel-mappable products. Advanced protocols like RDM (Remote Device Management) build on DMX512 to enable bidirectional communication, allowing operators to remotely set fixture addresses, monitor status, and run diagnostic tests without climbing trusses. For large-scale installations, Art-Net and sACN protocols transmit DMX data over standard Ethernet networks, breaking the traditional distance and channel limits of cable runs.

For DJs and small production teams, DMX DJ lighting setups offer an accessible entry point into professional control. Compact DMX controllers and software-based control programs let users build multi-fixture shows without full-size lighting consoles. Many entry-level fixtures support simplified DMX modes with fewer channels, making programming faster and easier for users who don’t need full feature sets. Yet even these basic models retain compatibility with professional consoles, so rigs can scale up seamlessly as needs grow.

The entire YW Lite product portfolio is built around native DMX512 support, ensuring plug-and-play integration into any professional lighting system. From entry-level LED pars and battery lights to high-end wash fixtures and blinder lights, every fixture supports standard DMX512 control with selectable channel modes to match different programming needs. The 5X80W INFINITE DUO TORNADO, with its infinite rotation and dual focusing system, showcases the creative potential of DMX control — every rotation speed, focus position, and color parameter is precisely controllable via DMX, enabling never-before-seen dynamic beam effects.

The advantages of a standardized DMX512 ecosystem are immense. Venues can mix and match fixture brands and types while maintaining a single control infrastructure, reducing long-term upgrade costs. Rental companies can build flexible inventories that work with any client’s existing control setup. Lighting designers can work with familiar tools and workflows, knowing their programming will translate reliably across different venues and equipment. And because DMX512 is an open standard, there is constant innovation in control software, interfaces, and fixture capabilities — all while maintaining backward compatibility.

As stage lighting continues to evolve with LED technology, pixel mapping, and intelligent fixtures, DMX512 will remain the backbone of control. New protocols and networking technologies will extend its capabilities, but the core language of lighting control will stay the same. For anyone working in professional lighting — from volunteer church techs to world-touring lighting designers — understanding DMX512 stage lighting is not just a skill; it is the foundation of the entire craft.
