DMX512 Stage Lighting: The Backbone of Professional Dynamic Light Shows

In the world of professional stage lighting, there is one universal standard that ties every fixture, controller, and effect together: DMX512. Short for Digital Multiplex 512, DMX is the communication protocol that allows lighting consoles to control hundreds—even thousands—of individual lighting fixtures with precision, enabling the complex, synchronized light shows that define modern concerts, theater, and live events. From simple par lights to sophisticated moving heads and special effects fixtures, DMX512 compatibility is the mark of professional-grade stage lighting equipment.

Yawin Lighting designs its entire product portfolio with full DMX512 support, ensuring that every par light, wash light, battery fixture, and special effect light integrates seamlessly into professional lighting systems of any scale. Whether you’re building a small 12-fixture rig for a mobile DJ business or a massive festival stage with hundreds of fixtures, Yawin’s DMX-compatible lighting products deliver consistent, reliable control and performance.

At its core, DMX512 works by sending digital control signals over standard XLR cables, with each “universe” of DMX supporting up to 512 individual control channels. Each channel corresponds to a specific parameter of a lighting fixture: dimming intensity, red color level, green color level, blue color level, strobe speed, pan, tilt, focus, and so on. This channel-based control allows lighting designers to program extremely precise cues, adjusting every parameter of every fixture independently to create specific looks, transitions, and effects. For example, a standard RGBW LED par light might use 4 to 8 DMX channels, while a complex moving head fixture could use 20 or more channels to control every aspect of its movement and output.

Yawin’s 5X80W INFINITE DUO TORNADO is a perfect example of how DMX512 control unlocks creative potential in advanced stage lighting fixtures. This innovative effect light features bidirectional endless rotation and a dual focusing system, producing sharp beams and dynamic tornado-style effects that add high-energy visual impact to any stage. With DMX512 control, lighting programmers can precisely adjust rotation speed, beam focus, dimming, strobing, and color parameters, syncing the fixture’s movement and effects perfectly with music, video, and other stage elements. The fixture’s infinite rotation capability, controlled via DMX, allows for continuous, seamless movement patterns that would be impossible with pre-programmed standalone modes. This makes the INFINITE DUO TORNADO a standout choice for nightclubs, concert stages, and high-energy events where dynamic, eye-catching effects are essential.

For more conventional stage lighting setups, Yawin’s full line of LED par lights, wash lights, blinder lights, and battery lights all offer flexible DMX channel modes to suit different programming needs. Many fixtures offer multiple DMX channel modes: a simplified mode with fewer channels for basic control and faster programming, and an advanced mode with full individual channel control for maximum creative flexibility. This scalability makes them suitable for everyone from beginner DJs learning the basics of DMX programming to professional lighting designers working on large-scale productions.

One of the biggest advantages of DMX512 stage lighting is its universality. Any DMX-compatible fixture from any manufacturer can work on the same DMX universe with the same lighting console, allowing production teams to mix and match equipment from different brands to build the perfect rig for each show. This interoperability also means that investing in DMX lighting equipment is a long-term decision—fixtures remain compatible with new controllers, software, and other equipment for years, protecting the buyer’s investment.

Modern DMX512 systems have also evolved far beyond simple wired XLR connections. Today, wireless DMX transmitters and receivers allow lighting designers to place fixtures anywhere on stage or around a venue without running control cables, greatly expanding creative placement options. This is especially valuable for battery-powered lights, architectural lighting installations, and outdoor events where running control cables would be impractical. Yawin’s battery-powered lighting fixtures are fully compatible with wireless DMX systems, enabling completely cable-free lighting setups for maximum flexibility.

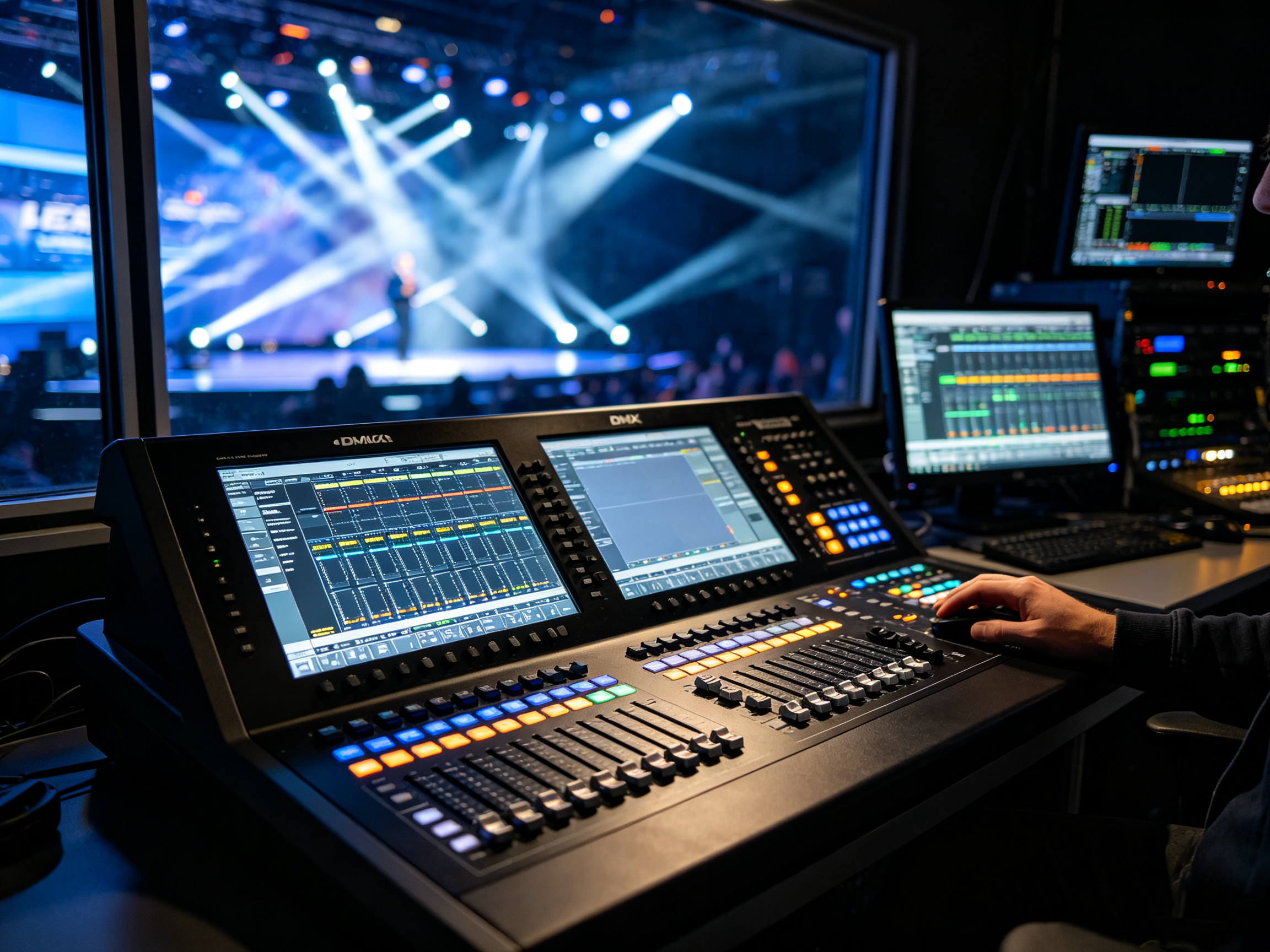

Learning to work with DMX512 is an essential skill for anyone working in professional stage lighting. Modern lighting consoles range from simple, affordable 12-channel controllers for small events to advanced, console-grade systems with touchscreens, visual programming, and support for dozens of DMX universes for large-scale shows. There are also software-based DMX controllers that run on laptops, offering a cost-effective alternative for mobile DJs and small production companies.

As stage lighting technology continues to advance—with more sophisticated LED fixtures, pixel mapping, video integration, and immersive effects—the role of DMX512 as the universal control standard remains as important as ever. It is the common language that allows all lighting equipment to work together, enabling designers to turn creative ideas into fully realized, synchronized visual experiences.

Yawin Lighting is committed to manufacturing high-quality, DMX512-compatible stage lighting fixtures that meet the demands of modern production professionals. Every fixture undergoes rigorous testing to ensure reliable DMX communication, consistent channel response, and compatibility with all major lighting consoles and control systems. Whether you’re just starting to build your first DMX lighting rig or expanding a large rental inventory, Yawin’s comprehensive lineup of DMX stage lights offers the performance, reliability, and creative control to bring any lighting design to life.
