INFINITY STAR(YE01)

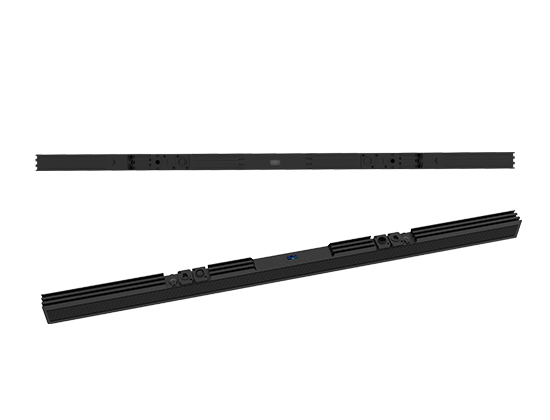

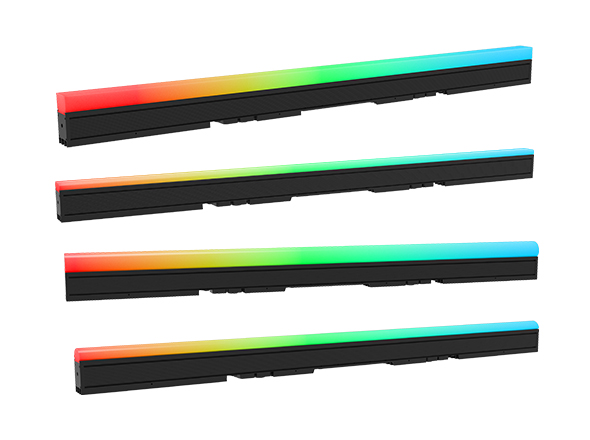

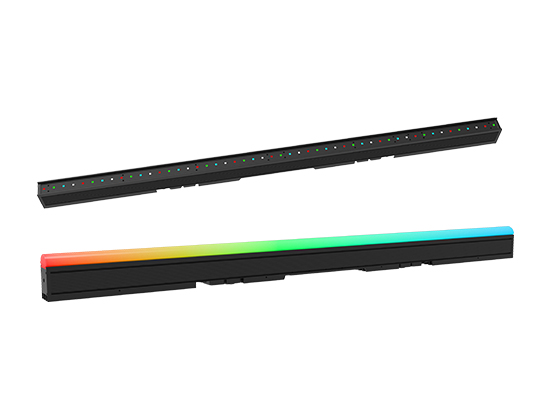

INFINITY STAR is a linear outdoor-rated LED video fixture for the rental market with 20 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 20 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.
1
2

VIDEO

Types of Effects

PARAMETER

Physical VDO Sceptron™ 20, 320 mm model Length320 mm (12.6 in.)
Width27 mm (1.06 in.)
Height without front28 mm (1.10 in.)
Height with standard front (Square Diffuser)42 mm (1.65 in.)
Weight without front0.40 kg (0.9 lbs.)
Weight with standard front (Square Diffuser)0.50 kg (1.1 lbs.)
VDO Sceptron™ 20, 1000 mm model Length1000 mm (39.4 in.)
Width27 mm (1.06 in.)
Height without front28 mm (1.10 in.)
Height with standard front (Square Diffuser)42 mm (1.65 in.)
Weight without front1.2 kg (2.6 lbs.)
Weight with standard front (Square Diffuser)1.4 kg (3.1 lbs.)
Dynamic Effects Control resolution16-bit (P3) or 8-bit (DMX) control of each color
Control optionsMartin P3™ System Controller (via Martin P3 PowerPort™) or DMX
Protocol detectionAutomatic
Setting and addressingMartin P3™ System Controller or RDM-compliant controller
Color and intensity calibrationPixel-level
DMX complianceUSITT DMX512-A
RDM complianceANSI/ESTA E1.20
Firmware updateVia Martin P3™ System Controller
Control modes, direct DMX controlRGB, Basic, Segment and Pixel
DMX channels, direct DMX control3/10/13/22/55/157
Control modes, DMX via P3P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap
DMX channels, DMX via P3Wide range of options from 1 to 153
Device statusMulti-color visual indication
Device test and resetMagnetic pushbutton to call up local test patterns and reset device
Minimum LED lifetime50,000 hours (to >70% luminous output)*
BinningTight color and flux binning
CalibrationFull Gamut Pixel Calibration
Diffuser/Lens OptionsOpen Front, Flat Diffuser, Flat Smoked Diffuser, Round Diffuser, Round Smoked Diffuser, Square Diffuser (supplied standard with fixture), Square Smoked Diffuser, Tube Diffuser, Tube Smoked Diffuser, NoBlend Diffuser 20 mm, NoBlend Smoked Diffuser 20 mm, NoBlend Diffuser 40 mm, NoBlend Smoked Diffuser 40 mm, Lens Array Narrow 20 mm, Asymmetric (Wall-Washing) Lens
Color resolution16 bits per color (48 bits per pixel)
Viewing angle120° x 120° (half-peak)
Pitch (pixel center-to-center)20.00 mm
Luminous intensity, calibrated mode125 cd per meter
Luminous output, calibrated mode375 lumen per meter
Total output, calibrated mode4166 nits (fixtures placed in continuous surface at 30 mm center-to-center)
LED Array VDO Sceptron 20 320mm1 x 16
LED Array VDO Sceptron 20 1000mm1 x 50
CCT6500 Kelvin
LED refresh rate - Standard Mode1001 Hz
LED refresh rate - High Refresh Mode4004 Hz
Brightness controlVideo Processing
Gamma correction and controlVideo Processing
Color temperature controlVideo Processing
Color space controlVideo Processing
Calibration processingVideo Processing
SynchronizationVideo Processing
Signal ProtocolMartin P3 (via Martin P3™ PowerPort) or DMX
ColorMatte black
BaseExtruded aluminum profile
Protection ratingIP65
RoHS compliantYes
MountingChannel for M6 captive nuts on back of profile
Mounting optionsM6 bolts, optional sliding bracket (accepts M12 bolt), half coupler, spigot adapter, linear coupler, parallel coupler, pivot coupler, floorstand
OrientationAny
Power and data input6-pin custom (BBD) IP66-rated
Power and data thru6-pin custom (BBD) IP66-rated
Hot plugging compatibleYes
Nominal input voltage48 VDC +/- 4%
Power supply optionsMartin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU
Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 20, 320 mm5 W
Maximum power consumption, all LEDs at full intensity, VDO Sceptron™ 20, 1000 mm15 W
CoolingConvection
Maximum ambient temperature (Ta max.)55° C (131° F)
Minimum ambient temperature (Ta min.)-30° C (-22° F)
Total heat dissipation (calculated, +/- 10%), VDO Sceptron™ 20, 320 mm19 BTU/hr
Total heat dissipation (calculated, +/- 10%), VDO Sceptron™ 20, 1000 mm60 BTU/hr
RoHSCompliant
REACHCompliant
WEEECompliant
Proposition 65Compliant
Efficacy (max output)22.1 lm/W
LWR*277 lm/kg (128 lm/lb)
EU safetyEN 60950-1, EN 60950-22, EN 62471
EU EMCEN 55032, EN 55024
US safetyUL 60950-1, UL 60950-22
US EMCFCC Part 15 Class A
Canadian safetyCSA C22.2 No. 60950-1, No. 60950-22
Canadian EMCICES-003 Class A
Australia/NZRCM
IndiaBIS

Accessory Installation

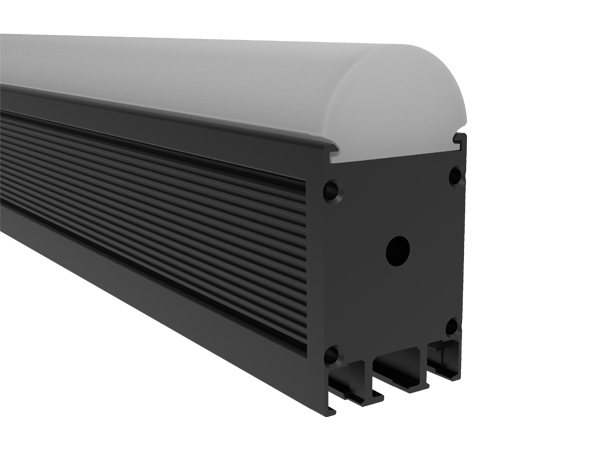

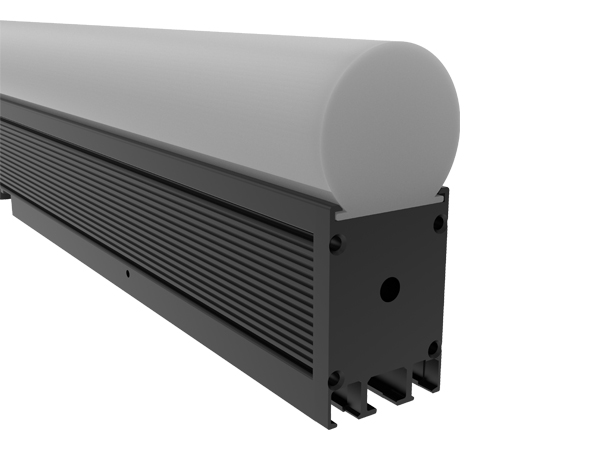

As a Round Diffuser, my job is to soften the beam, transforming it from a hard, focused spotlight into a smooth, even wash of light. I eliminate harsh shadows and hotspots, creating a gentle, flattering glow that's perfect for general stage coverage, backlighting, or adding a soft, atmospheric touch to a scene.

8

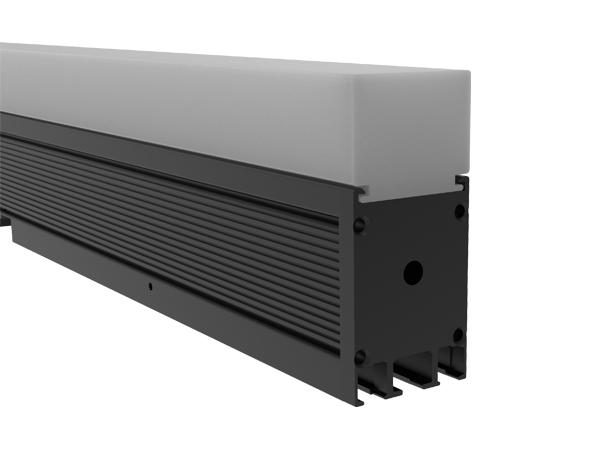

I am a Square Diffuser, and my purpose is to reshape and soften the light to match the natural geometry of the stage and video screens. By scattering the beam evenly, I transform my output from a round spot into a square wash, ensuring seamless, even coverage across backdrops and sets without the need for complex focusing. This creates a smooth, shadow-free look that blends perfectly with other lights, making me the ideal choice for modern stage washes and video-friendly lighting.

10

I am a Semi-circular Diffuser, a specialized tool designed to shape my beam into a unique "half-moon" profile. By softening the light in this distinct shape, I allow lighting designers to create dramatic visual effects—such as highlighting specific sections of a backdrop or casting unique, artistic shadows—without the need for gobos or complex focusing, adding a layer of creative texture to the stage.

7

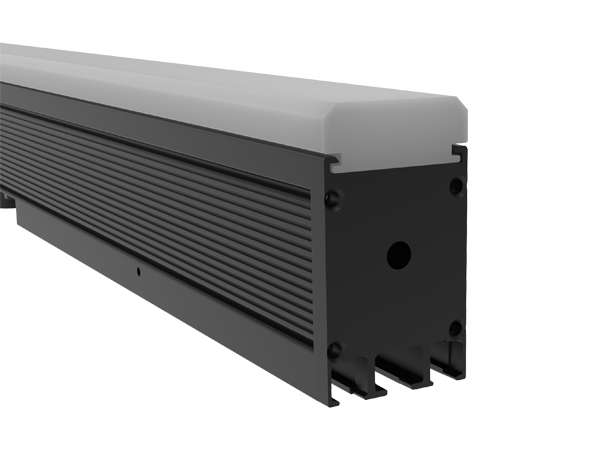

I am a Half-square Diffuser, a specialized filter designed to modify my beam into a distinct "half-square" shape. By softening the light in this specific geometry, I allow lighting designers to create precise, dramatic effects—such as cutting light sharply across a stage or blending seamlessly with other fixtures—adding a unique layer of texture and control to the visual storytelling.

9

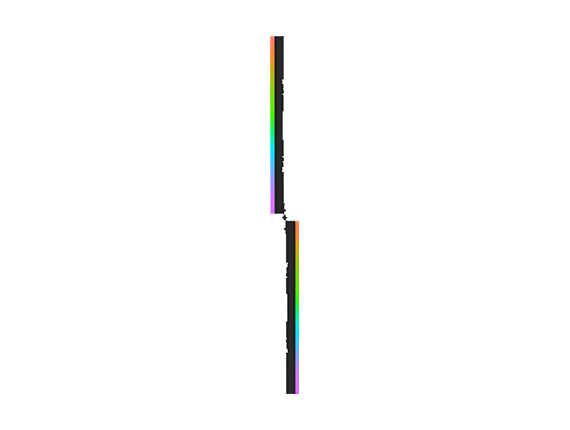

I am a 180° Connector, and my job is to flip my perspective completely. By attaching to my housing, I allow my beam to shoot straight back the way it came, enabling me to "look over my own shoulder." This turns me into the perfect solution for tight spots—like the end of a truss or a crowded stage edge—where I can still illuminate the rest of the stage or the audience without taking up extra space or needing to be turned around.

13
14

I am a 90° Connector, and my role is to give me the ability to pivot and redirect my beam instantly. By attaching to my output, I can turn my light 90 degrees to the side, allowing me to shine from tight spaces—like the edge of a truss or a corner of a set—without having to physically rotate the entire fixture. This turns me into a flexible tool for creative side-lighting, uplighting, or hitting specific spots that would otherwise be impossible to reach.

11
12

I am a Rotating Connector, and my superpower is flexibility. Unlike a fixed bracket, I allow my beam to be adjusted to any angle—even while I'm hanging—simply by twisting me. This means I can fine-tune my aim with precision, correcting my focus or changing my direction on the fly, without having to re-rig the entire fixture, giving the lighting crew total control over where I shine.

15
16

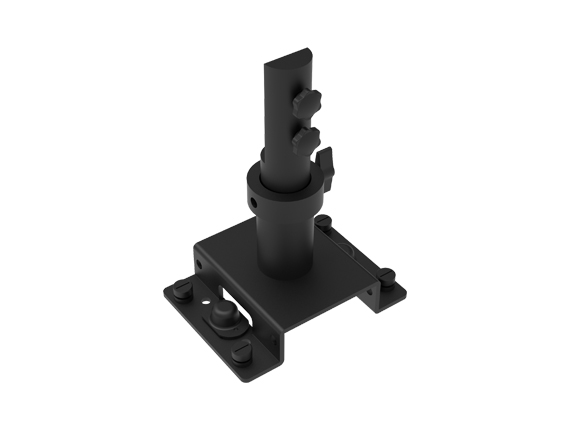

I am the Base Connector, and I am the essential link that turns me from a standalone unit into a fully integrated part of the rig. By attaching securely to my housing, I provide the stable mounting point that allows me to be safely hung from trusses or stands. I ensure that I stay exactly where the crew puts me—solid, steady, and vibration-free—so I can focus on delivering the perfect beam without any wobble or movement.

17
18

I am a Horizontal Connector, and my purpose is to help me stand tall and look straight ahead. By extending my mounting point away from my body, I ensure that my beam shoots out perfectly parallel to the ground, even when I'm sitting right on the floor or packed tightly in a row. This prevents my housing from blocking my own light, allowing me to create clean, horizontal beams for aerial effects or to wash the stage evenly without any physical interference.

19
20

I am a Rectangular Connector, and my job is to reshape my footprint to match the modern stage. By extending my housing, I transform my output from a standard circle into a sleek, wide rectangle. This allows me to cover backdrops, cycloramas, and large scenic elements with a tall, narrow wash of light that fits the aspect ratio of the set perfectly—eliminating wasted light on the floor or ceiling and ensuring a crisp, professional look.

21
22

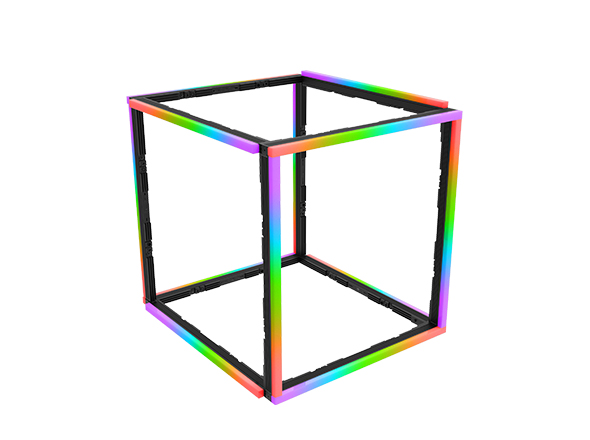

I am a Cube Connector, and my role is to give me a solid, three-dimensional presence. By adding depth and structure to my housing, I allow myself to be mounted in complex, multi-directional configurations—perfect for building intricate light arrays or "light boxes." I turn me into a versatile building block, enabling the crew to create unique geometric rigs and immersive environments that go far beyond a simple flat wash of light.


23
24

Wireless APP Control

25
5

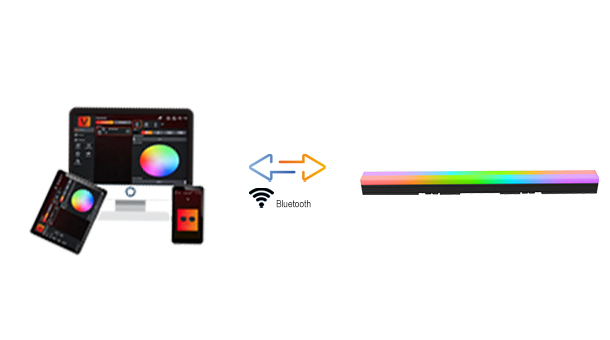

I am Wireless APP Control, the invisible link that puts the entire show at the operator's fingertips. By connecting me to a smartphone or tablet, I allow the lighting designer to program my colors, movements, and effects without being tethered to a bulky console. This freedom turns any device into a command center, making it incredibly fast and easy to tweak my settings, create dynamic scenes, and control the atmosphere of the stage from anywhere in the room.

Usage scenarios

2
