The Stage Lighting Evolution: Wall Wash Lights as Canvas Painters
In the contemporary entertainment landscape of 2025, the line between illumination and artistry has never been more blurred. While audiences fixate on performers and set pieces, a silent revolution unfolds along the vertical planes of our stages and venues: stage wall wash lights have emerged as the definitive tool for transforming blank surfaces into dynamic storytelling canvases.
Unlike traditional spotlights that isolate subjects, wall wash fixtures paint entire environments with uniform, saturated color, creating atmospheric depth that fundamentally reshapes audience perception. From the pulsing gradients at Coachella's main stage to the subtle amber sweeps across Broadway backdrops, these fixtures have become indispensable in modern professional stage lighting design.
This comprehensive analysis explores how LED wall washer stage lights are redefining production possibilities, delivering unprecedented creative control while achieving remarkable energy efficiency gains of up to 85% compared to legacy halogen systems.

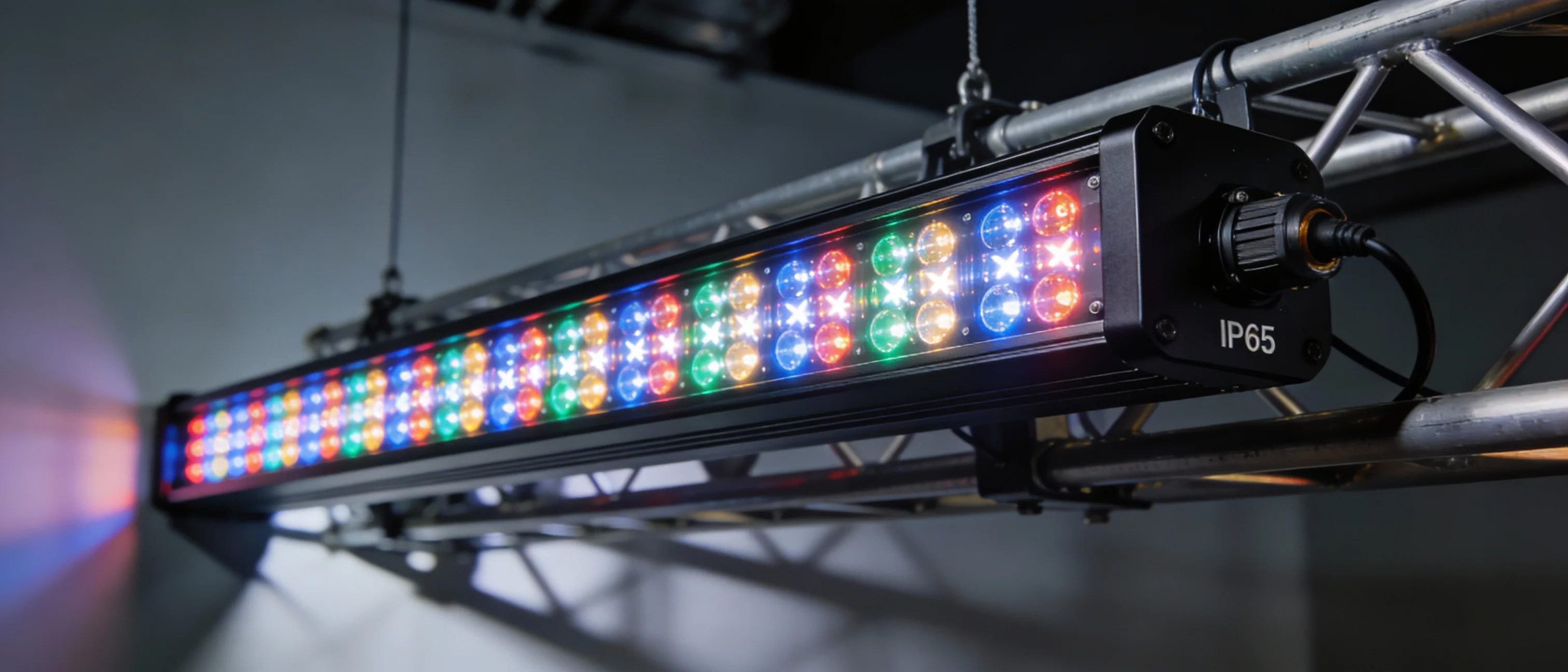

![1]()
Deconstructing Wall Wash Technology: From Simple Floods to Intelligent Luminaires
The Fundamental Principle
At its core, a stage wall wash light is engineered to produce evenly distributed illumination across vertical surfaces—walls, cycloramas, set pieces, or architectural elements. The objective is eliminating hot spots and shadows while maximizing color saturation and coverage uniformity. Modern fixtures achieve this through:
-
Asymmetrical reflector designs that project rectangular light pools matching wall proportions
-
Linear LED arrays with individual diode control for pixel-mapping effects
-
Zoom optics (ranging from 7° to 90°) adapting to variable throw distances
-
High Color Rendering Index (CRI 90+) ensuring broadcast-quality image capture
The LED Transformation
Traditional halogen wall washers consumed 1,000-2,000W per fixture, generated extreme heat, and required frequent gel changes. Today's LED wall wash stage lights revolutionize this paradigm:
Performance Metrics of 2025 Fixtures:
-
Power consumption: 200-800W for equivalent or superior output
-
Lifespan: 50,000+ hours (10+ years of nightly operation)
-
Color spectrum: RGBWA+UV (6-in-1) mixing for 16.7 million hues plus ultraviolet effects
-
Dimming: 32-bit linear dimming from 0-100% without stepping
-
Refresh rate: 20,000Hz, ensuring flicker-free recording at any frame rate
The IP65 Revolution: Wall Washing Moves Outdoors
Perhaps the most significant advancement in 2025 is the mainstream adoption of IP65-rated LED wall wash lights, enabling permanent outdoor installations and festival productions without weather vulnerability concerns.
What IP65 Certification Means:
-
Dust-tight construction: Complete protection against particulate intrusion
-
Water jet resistance: Withstands 12.5mm nozzle water streams from any direction
-
Corrosion-resistant coatings: Anodized aluminum and stainless steel hardware
-
Sealed electronics: Encapsulated LED boards and IP-rated connectors
Real-World Applications:
The Elation Proteus Rayzor 1960, an IP65-rated moving wash fixture, demonstrates this capability with 19×60W RGBW LEDs delivering 15,000+ lumens while operating flawlessly in rain, wind, and temperature extremes from -30°C to 50°C. This reliability has made IP65 fixtures standard for:
-
Outdoor music festivals (Coachella, Glastonbury, Tomorrowland)
-
Amphitheater installations (Red Rocks, Hollywood Bowl)
-
Architectural building projections (permanent city installations)
-
Theme park spectaculars (Disney, Universal Studios)
DMX512 Control: The Neural Network of Stage Illumination
Modern DMX512 stage wash lighting systems transform individual fixtures into an orchestrated visual symphony. Each wall wash unit operates as an intelligent node in a networked ecosystem.
Channel Configurations:
Basic fixtures operate on 4-8 channels, while advanced models utilize 40+ channels for:
-
Master dimmer and individual color control
-
Macro effects (pre-programmed color sequences)
-
Pixel mapping (individual LED addressing)
-
Strobe speed and synchronization
-
Color temperature adjustment (2,700K-8,000K)
-
Zoom and focus motor control
Programming Paradigms:
Leading productions employ palette-based programming, where color, intensity, and position presets are stored independently and combined dynamically. This approach enables:
-
Rapid cue creation during technical rehearsals
-
Real-time adjustments via remote control apps
-
Fixture interchangeability without reprogramming
-
Backup scene deployment in under 3 seconds
The RDM (Remote Device Management) protocol extension allows technicians to remotely configure fixture addresses, monitor operating temperatures, and receive failure alerts—critical for troubleshooting rigs containing 100+ units.
Application Scenarios: Where Wall Wash Lights Create Magic
1. Concert Tours and Music Festivals
At the 2024 "Electric Horizon" festival, lighting designer Marcus Chen deployed 240 RGBW wall wash bars across a 120-meter-wide stage. Using pixel-mapping, he created flowing "liquid light" effects where color waves cascaded across the stage facade, synchronized to BPM-tempo changes.
Technical Specs Used:
-
44×10W RGBW LED bars (450W each)
-
15-45° motorized zoom
-
Wireless CRMX DMX transmission
-
Result: 70% power reduction vs. 2020 rig, zero lamp failures across 472 performances
2. Theatrical Productions
Broadway's Neon Dreams utilizes theatrical wall wash lighting exclusively for scene transitions. Designer Sarah Williams explains: "We replaced traditional cyc lights with IP20-rated wall washers positioned 3 meters from the backdrop. The asymmetrical optics deliver perfect uniformity, and the ability to shift from 3,200K warm white to 10,000K cool blue in 0.5 seconds transformed our act transitions."
3. Corporate Events and Product Launches
Fortune 500 companies demand brand-color accuracy within ΔE<2 tolerance. Advanced professional stage lighting fixtures achieve this through:
-
16-bit color mixing (65,536 steps per channel)
-
Built-in color correction for camera sensors
-
Pantone-matched presets stored in fixture memory
4. Houses of Worship
Modern churches integrate LED wall wash stage lights for broadcast services, requiring:
-
Silent fanless cooling (acoustic noise <25dB)
-
High CRI (95+) for flattering skin tones
-
Dimming curves optimized for slow fades during contemplative moments
5. Nightlife and DJ Performations
The quintessential DJ lighting setup employs compact wall wash fixtures behind booths and along venue perimeters. The IMRELAX Vintage Stage Light, with 168 RGB LEDs plus 7×60W warm white COBs, creates retro-futuristic ambiance with sound-activated chases and 1-30Hz strobe effects.
Key Specifications: The Professional's Checklist
When specifying stage lighting wall wash fixtures for purchase or rental, experienced designers prioritize:
Optical Performance
-
Beam angle range: 7° (tight accent) to 90° (broad coverage)
-
Field uniformity: >90% edge-to-center brightness ratio
-
Color consistency: ±150K CCT tolerance across fixtures
-
Lumen output: 5,000-15,000 lumens for most applications
Durability & Maintenance
-
IP rating: IP65 for outdoor/wet applications, IP20 for indoor theater
-
Cooling system: Active fan (for high-power) vs. passive heatsink (silent operation)
-
LED lifespan: 50,000 hours minimum (L70 rating)
-
Warranty: 2-year standard, 5-year extended options available
Connectivity & Control
-
DMX ports: 3-pin and 5-pin XLR, IP65-rated for outdoor units
-
Power: PowerCon True1 connectors, daisy-chain capability (6-8 units @ 120V)
-
Protocols: DMX512-A, RDM, Art-Net, sACN for network control
-
Dimming curves: Linear, square law, S-curve, and customizable
Physical Characteristics
-
Housing material: Die-cast aluminum (touring grade) vs. polycarbonate (budget)
-
Weight: 8-25 kg depending on size and IP rating
-
Mounting: Omega brackets, quick-lock clamps, floor-standing options
-
Size: Compact "slim" designs (10cm depth) vs. high-output boxes (30cm+)
Installation Mastery: Positioning for Perfect Uniformity
Achieving flawless wall wash results requires precision in fixture placement and aiming. Professional LDs follow these principles:
The Inverse Square Law in Practice
For every doubling of distance from the wall, intensity decreases by 75%. Therefore:
-
Short-throw applications (<3m): Use wide-angle fixtures (60-90°) with lower power
-
Medium-throw (3-8m): 25-40° beams with moderate output (5,000-8,000 lumens)
-
Long-throw (>8m): Narrow beams (15-25°) with high output (12,000+ lumens)
Overlapping Technique
Professional installations overlap beams by 30-50% to eliminate dark spots. For a 10-meter wall:
-
Option A: 3× fixtures @ 40° beam, spaced 3.5m apart, 4m from wall
-
Option B: 5× fixtures @ 25° beam, spaced 2m apart, 6m from wall (higher uniformity)
Angle of Incidence
Mount fixtures at 30-45° relative to the wall surface. Angles shallower than 20° create grazing effects (accentuating texture) but reduce coverage uniformity. Steeper angles (>60°) minimize texture but may cause undesirable reflections.
Height Considerations
For stage backdrops, position fixtures:
-
Floor-mounted: Creates dramatic upward wash, emphasizes verticality
-
Mid-height (2-4m): Most common, balances coverage and accessibility
-
Truss-mounted: Overhead wash for large cycs, requires high-output fixtures
2025 Trends: The Future of Wall Wash Lighting
1. AI-Powered Auto-Calibration
Emerging fixtures incorporate onboard cameras and machine learning algorithms that automatically adjust aim, zoom, and color to maintain uniformity as atmospheric conditions change (temperature, humidity, haze density).
2. Li-Fi Data Transmission
Next-generation LED wall wash stage lights will use visible light communication (Li-Fi) to receive DMX data, eliminating radio interference in crowded RF environments like festivals with 50+ wireless systems.
3. Sustainable Material Innovation
Manufacturers are adopting:
-
Recycled aluminum housings (70% post-consumer content)
-
Bio-based polymers for lenses and gaskets
-
Solar-charging battery modules for remote outdoor installations
4. Holographic Beam Shaping
Experimental prototypes use digital micro-mirror arrays (DMDs) to dynamically shape beams, creating moving patterns within the wash without mechanical gobos—imagine waves, ripples, or logo projections embedded in the wall wash.
5. Human-Centric Lighting Integration
Fixtures now sync with circadian rhythm protocols, automatically adjusting color temperature throughout multi-day events to maintain audience alertness and performer well-being.
Economic Impact: ROI Analysis for Venue Upgrades
Venues transitioning from halogen to LED wall wash stage lights achieve compelling returns:
Case Study: 800-Seat Regional Theater
-
Initial investment: $45,000 (30× RGBW LED bars @ $1,500 each)
-
Annual energy savings: $8,400 (from 24,000W to 3,600W nightly operation)
-
Maintenance savings: $2,100 (no lamp replacements, reduced HVAC)
-
Labor savings: $3,600 (quicker focus, remote configuration)
-
Total first-year savings: $14,100
-
Payback period: 3.2 years
-
10-year ROI: 312% when including residual fixture value
Additional intangible benefits include:
-
Enhanced production value attracting higher-profile shows
-
Broadcast-ready quality enabling live streaming revenue
-
Volunteer-friendly operation reducing trained technician needs
Common Pitfalls: Mistakes That Undermine Performance
Even experienced designers occasionally compromise results. Avoid these errors:
-
Underestimating Throw DistanceUsing wide-angle fixtures for long throws creates dim, uneven coverage. Always calculate beam spread using: Beam Diameter = Distance × 2 × tan(Beam Angle/2)
-
Ignoring Ambient Light ContaminationFailing to control stage work lights or venue houselights washes out wall wash effects, reducing contrast by 40-60%.
-
Mixing Fixture GenerationsCombining fixtures with different CRI ratings or color mixing algorithms creates visible seams. Standardize on one manufacturer per lighting zone.
-
Insufficient DMX Address PlanningRunning out of channels mid-rig forces compromises. Budget 6-8 channels per advanced fixture, plus 20% overhead for future expansion.
-
Neglecting Lens MaintenanceDust accumulation reduces output by 15% monthly in active venues. Implement weekly cleaning schedules using microfiber cloths and isopropyl alcohol.
-
Overlooking Power FactorCheap fixtures with poor power factor (<0.7) cause voltage drops, leading to flicker and color inconsistency across long DMX runs.
Buying Guide: Matching Fixtures to Your Application
For Small Venues (Clubs, Houses of Worship)
-
Budget: $200-500 per fixture
-
Spec: 12×15W RGBW, 25-50° zoom, IP20, fanless
-
Recommended: ADJ Mega Bar, Chauvet DJ COLORband
-
Key feature: Silent operation, easy DMX addressing
For Mid-Size Productions (Regional Theater, Corporate Events)
-
Budget: $800-1,500 per fixture
-
Spec: 18×20W RGBWA+UV, 15-40° motorized zoom, IP65
-
Recommended: Elation Fuze Wash, ETC Selador
-
Key feature: High CRI, palette-based programming, rugged build
For Touring and Arena-Scale Productions
-
Budget: $1,500-3,000 per fixture
-
Spec: 19×60W RGBW, 7-45° zoom, IP67, pixel mapping
-
Recommended: Elation Proteus Rayzor, Claypaky Scenius
-
Key feature: Extreme output, wireless DMX, 3D pixel control
For Budget-Conscious Buyers
Consider RGBW LED wall wash bar fixtures from reputable Chinese manufacturers (Guangzhou-based). Quality units offering 80% of premium performance at 40% cost, with warranties improving to 2-year standard.
Case Study: The "Celestial" Stadium Tour
When production designer Alicia Torres specified lighting for pop star Zara's 2024 stadium tour, she faced a unique challenge: create a 360° immersive environment for 70,000 fans per night across 42 venues with varying stage configurations.
The Solution:
-
180× IP65 RGBW wall wash bars (44×10W each)
-
Wireless CRMX DMX with sub-5ms latency
-
Custom-designed mounting brackets for rapid load-in (45-minute setup)
-
Motorized tilt adjustment remotely controllable from FOH
Results:
-
Power consumption: Reduced from 96kW (2020 rig) to 28kW
-
Truck pack: 4 cases vs. 12 cases previously (67% reduction)
-
Creative impact: Enabled seamless color transitions across 80-meter-wide stage facades
-
Reliability: Zero fixture failures across 89 performances
-
Broadcast: Met Netflix 4K HDR specifications without supplemental lighting
Torres notes: "The wall wash system didn't just light the stage—it became the stage. We projected abstract video content through pixel-mapping, turning the entire set into a living, breathing canvas."
Environmental Considerations: The Green Lighting Mandate
The entertainment industry faces increasing pressure to reduce carbon footprints. Professional stage lighting wall wash fixtures contribute through:
-
Dark sky compliance: Precise beam control eliminates light pollution
-
Energy Star certification: Many models now qualify for utility rebates
-
Recyclable components: 95% of fixture mass can be recycled at end-of-life
-
Carbon-neutral manufacturing: Leading brands offset production emissions
Target: Industry-wide goal of 70% reduction in lighting-related emissions by 2030, with wall wash LED conversion identified as the primary driver.
Conclusion: The Vertical Stage is the Future
As we progress through 2025 and beyond, stage wall wash lights have transcended their role as mere "lights" to become fundamental architectural elements of modern productions. They convert passive surfaces into active participants in storytelling, enabling designers to manipulate audience emotion through environmental color psychology.
The convergence of IP65 durability, AI-driven automation, wireless control, and sustainable manufacturing positions LED wall wash technology at the center of the industry's green transformation. Whether you're illuminating a small club's back wall or painting a stadium's entire facade, these fixtures deliver unmatched creative flexibility with quantifiable economic returns.
For production companies, venue managers, and lighting designers, the question is no longer "Should we invest in LED wall wash?" but rather "How quickly can we deploy them to remain competitive?" As live entertainment continues merging with immersive art installations, the ability to transform spaces through light becomes not just a technical skill, but the essential language of modern spectacle.
The walls have stopped being mere boundaries. With the right LED wall wash stage lights, they become the story itself.
